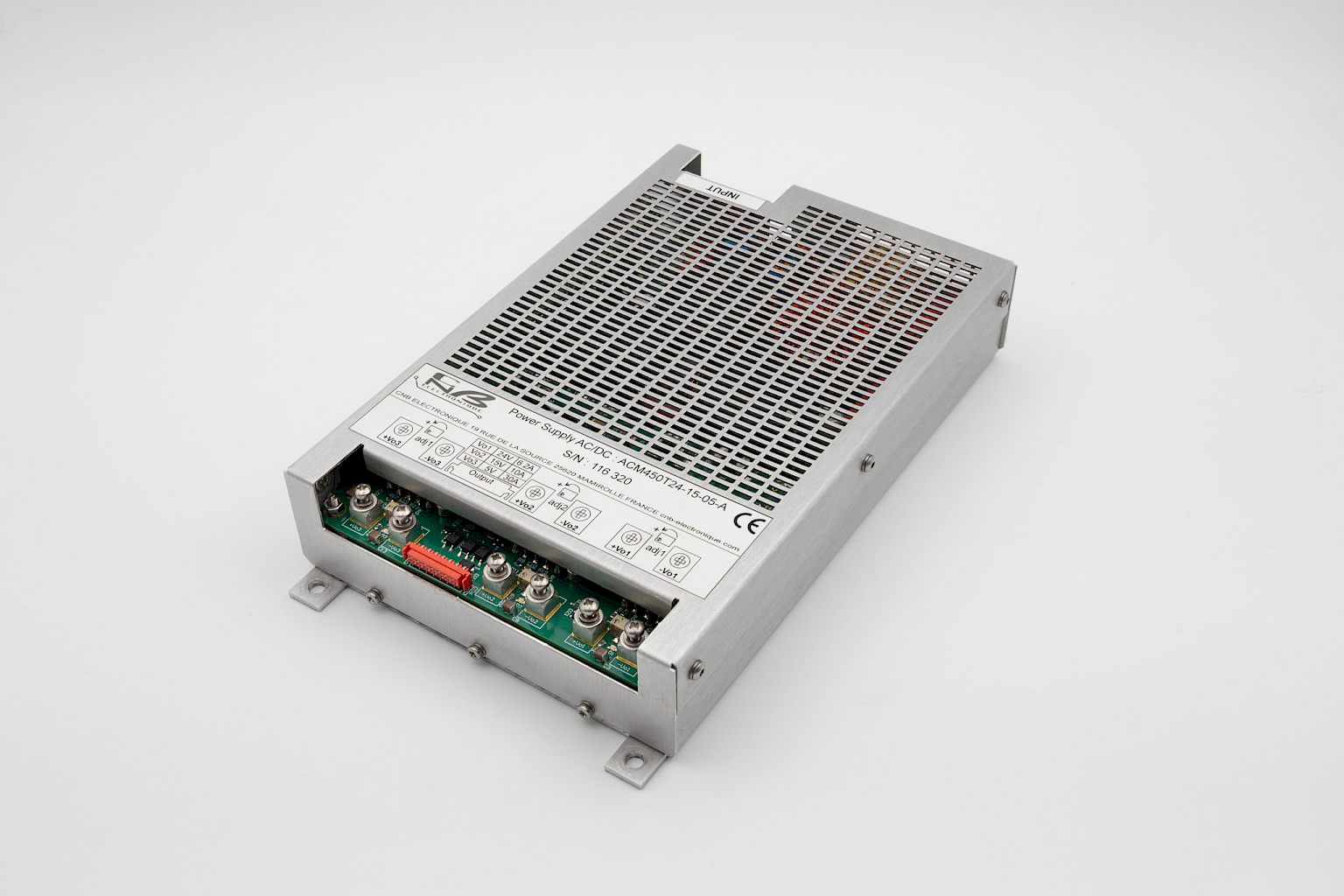

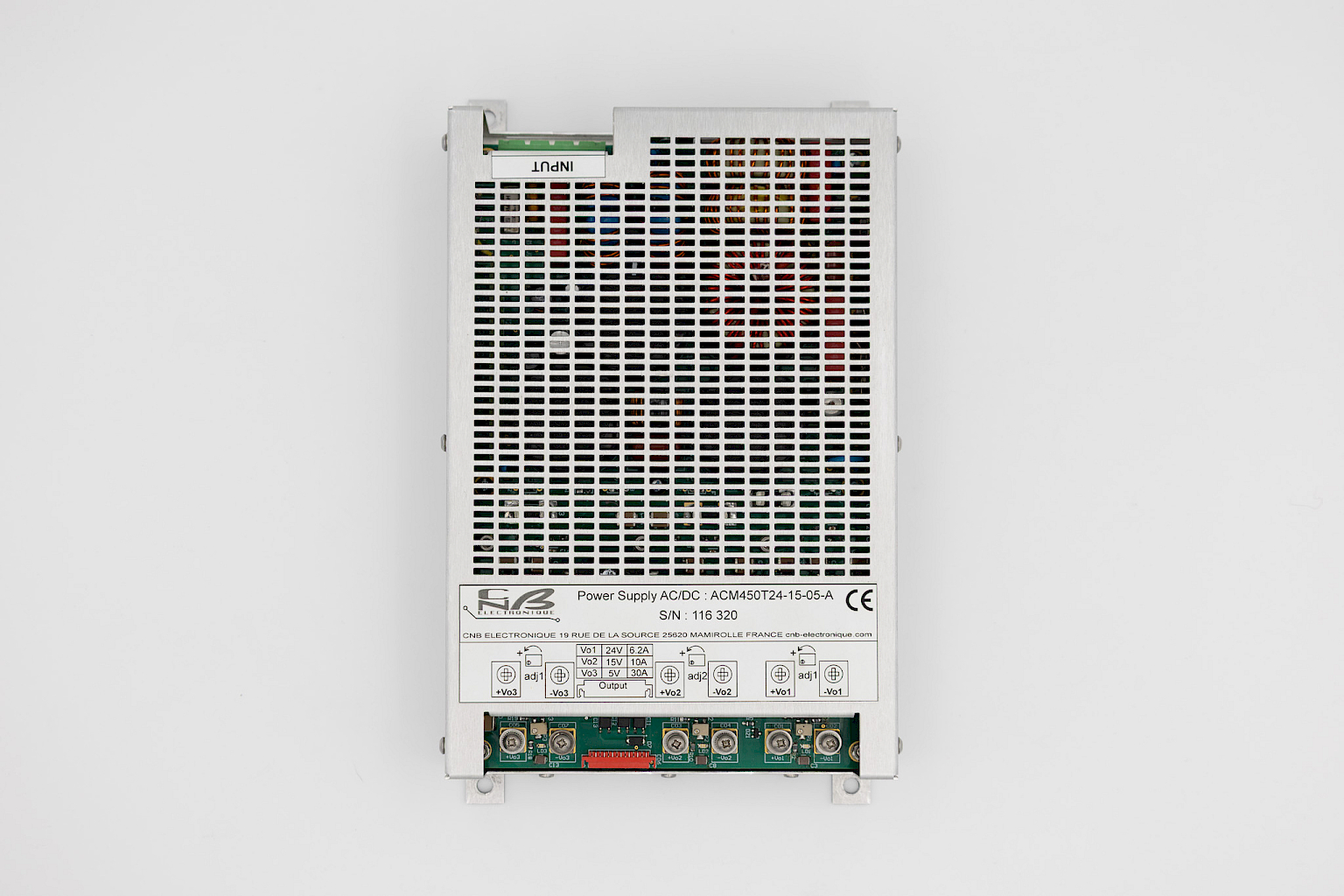

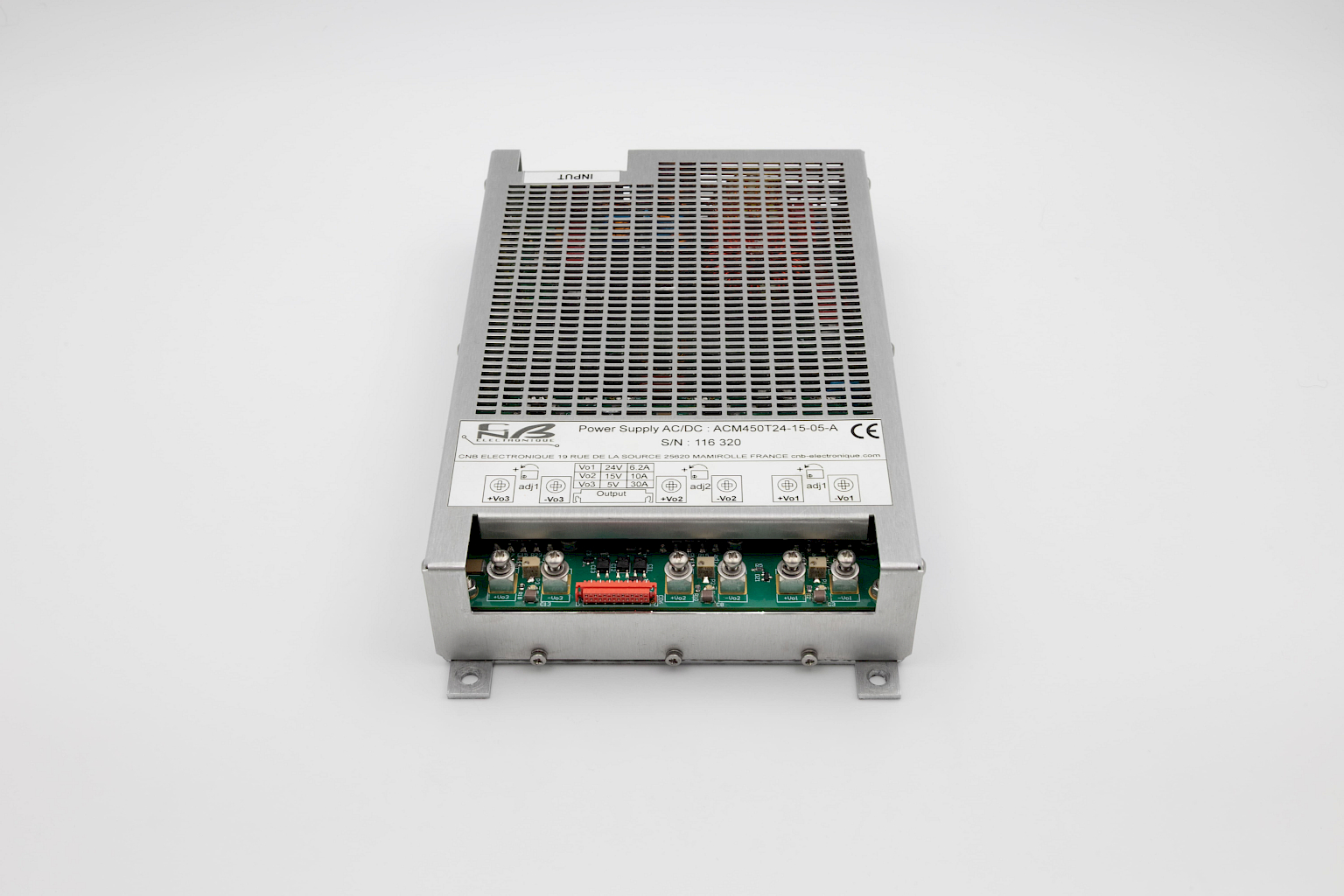

AC-DC - ACM 750S Serie
The ACM series is a baseplate-cooled AC-DC power supply for military applications.
Its "built-to-meet" design complies with MIL-STD standards, making it a COTS (commercial off-the-shelf) solution.
This product is suitable for many applications, including defense, industrial, and other critical sectors. Its rugged construction makes it ideal for harsh environments.
Protection against input undervoltage (UVLO), output overcurrent and overvoltage, overtemperature, and continuous short circuits.
Upon request, the ACM 750S can be customized to provide a semi-custom solution:
- output voltage modification
- heat sink addition
- fan addition
- IP65 enclosure integration
- connectors modification
Technical specifications
- Series: ACM 750S
- Family: AC-DC
- Technology: Switching
- Use: On-board
- Enclosure: Chassis Mount
- Cooling: Baseplate
- Maximum Power: 750W
- Number of Output: 1
- Voltage Range: 12 / 15 / 24 / 28 / 36 / 48 VDC
- Maximum Current: 62.5 / 50 / 31.2 / 26.7 / 20.8 / 15.6 A
